24×50 West Facing 3BHK House Plan with Central Dining, Puja Room & Staircase | 1200 Sq Ft Layout

West-facing 3BHK house floor plan designed on a 24 feet by 50 feet residential plot. The layout includes three bedrooms measuring approximately 12 feet by 13 feet, 13 feet by 11 feet, and 11 feet by 13 feet. A spacious drawing room measuring 10 feet by 8 feet is located at the front-right side. The kitchen measures 7 feet by 8 feet and is positioned near the drawing area. A centrally located dining hall measuring 15 feet by 13 feet connects all rooms. A dedicated puja room of 5 feet by 5 feet is provided near the dining area. The staircase (6 feet by 12 feet) is placed in the central-left portion of the layout. Multiple toilets and bathrooms are included, such as a 5 feet by 8 feet bathroom, a 3.5 feet by 5 feet toilet, and a combined 5 feet by 10 feet toilet and bath. The overall plan efficiently utilizes the full 24x50 plot dimension with balanced room distribution.

50×50 Two 2BHK Flats House Plan With Full Ventilation & Setbacks (Actual Size 47×52.25 ft)

“50×50 house plan (actual size 47×52.25 ft) with two 2BHK flats, full ventilation on all four sides, setbacks provided for airflow, central staircase, open kitchen-cum-dining layouts, attached toilets, open terraces, and plantation around the building for maximum natural light and airflow.”

40X60 3BHK WITH 3 SHOPS 3D FLOOR PLAN

house plan beautiful 40x60feet 3BHK 3shops40X60 3 BHK 3 SHOPS HOUSE PLAN BUILDINGO.png

30×30 3BHK House First Floor Plan with Common Toilet, Front Staircase Entry & Smart 900 Sq Ft Layout Design

30x30 feet first floor plan of a 3-bedroom residential house showing a front entrance near the staircase area. The layout includes a central drawing room (10x10 feet), a kitchen on the left side, two bedrooms positioned at the rear side each measuring approximately 13.75x10 feet, and one additional room on the right side that can function as an office or bedroom (10x12 feet). A common toilet (5x10 feet) is located near the staircase and attached close to the right-side room. The staircase is positioned at the front section of the house, allowing access to both the first-floor flat and the upper floor. The plan clearly marks room dimensions, door openings, furniture placements, and circulation paths within a 900 sq ft built-up area.

16×30 Feet 2BHK House Plan with Rear Staircase, 2 Bedrooms, Separate Kitchen & Toilet Layout

16x30 feet 2BHK house plan featuring rear staircase, two bedrooms, central drawing room, separate kitchen, and attached toilet layout for narrow residential plot.

15×35 North Facing 2BHK House Plan | Vastu Compliant Compact Layout with Staircase

15x35 north-facing 2BHK house plan with northeast and southwest bedrooms, southwest toilet, central open kitchen with drawing room, and northwest staircase as per Vastu.

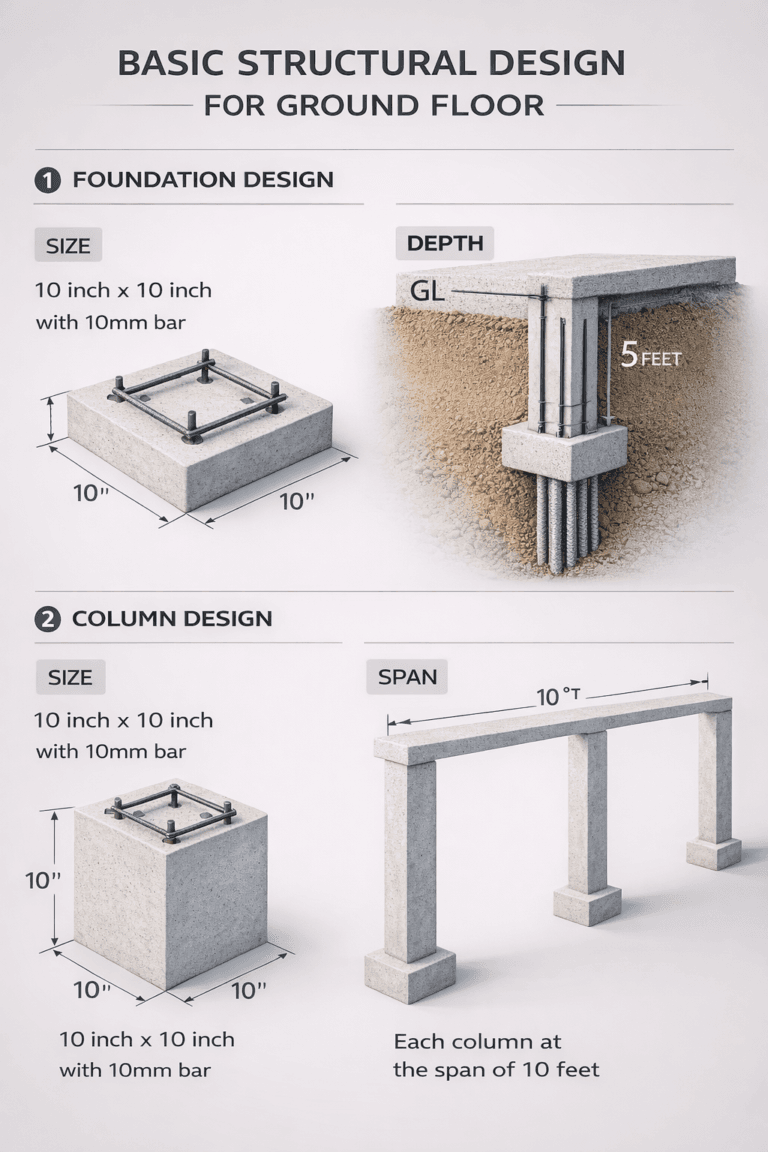

Basic Structural Design for Ground Plus One Floor – Foundation Size & Depth Details

3D structural diagram of foundation design for ground plus one floor building showing 10 inch by 10 inch column with 10mm steel bars and foundation depth below ground level.

20×45 Feet 2BHK House Plan with Staircase | Compact 20×45 Small Plot Home Design

20x45 feet 2BHK house plan featuring staircase, drawing room, dining area, kitchen, common toilet, and two bedrooms in a compact residential layout.

3BHK + 3BHK Twin Unit House Plan for 40×60 Plot (Actual Size 38.3×61.6 ft) – Perfect Dual-Family Layout

“Detailed 6-bedroom (3BHK + 3BHK) twin-unit house plan for a 40×60 plot (actual size: 38.3×61.6 ft) featuring two symmetrical 3BHK units with individual living rooms, dining areas, kitchens, multiple toilets, balcony/wash areas, and a central staircase with lift access. Each unit includes spacious bedrooms measuring 14.75×12 ft, 12×9 ft, and 13.6×12 ft, along with well-planned ventilation and a structurally efficient layout designed for rental income, joint-family living, or multi-floor construction.”

23×30 West Facing 2BHK House Plan with Staircase & Parking | Compact 690 Sq Ft Small Plot Home Design

West-facing compact 2BHK house floor plan with an actual built-up size of 23 feet by 30 feet (approximately 690 square feet). The layout features two equal-sized bedrooms measuring 10 feet by 10.5 feet each, positioned at the rear side of the house. A 21-foot-wide combined drawing and dining area is centrally placed, with a 10-foot dining space and living area arrangement. The kitchen measures 6 feet by 8 feet and is located on the left side near the staircase. A common toilet of 4 feet by 7 feet is positioned on the right side. The staircase and parking area at the front measure 7 feet in width with a stair length of approximately 14.33 feet, allowing separate access to the upper floor. The entrance door is centrally aligned below the staircase landing, making it suitable for independent ground-floor use and future vertical expansion.

20×60 West Facing 3BHK House Plan (Actual 20.16×59.9 Ft) with Puja Room, Balcony & Parking

20x60 west-facing 3BHK house plan (actual 20.16x59.9 ft) with master bedroom, puja room, kitchen, dining, drawing hall, large toilets, balcony, and parking under staircase.

17×30 House 3D Floor Plan (Actual 17×33.5 ft) – Realistic Interior Layout for Narrow Plot Home Design

High-quality 3D floor plan of a 17×30 narrow house (actual size 17×33.5 ft) showing realistic interior visualization with wooden flooring, modular kitchen, bedroom setup, toilet layout, staircase and natural lighting for precise architectural understanding. part 2

“100×250 ft Resort Floor Plan (Actual Size 96×249 ft) | Banquet Hall + Rooms + Lawn Area Layout”

“2D floor plan of a 100×250 ft resort (actual size 96×249 ft) showing a large landscaped lawn area on both sides, a central pathway, a ground-floor banquet hall with stage and dining setup, and a first-floor accommodation block with multiple rooms. The layout includes planted green zones, symmetrical outdoor spaces, and separate circulation for resort guests.”

22×42 North Facing 2BHK House Plan with Attached Toilet & Balcony | Smart Vastu Design

22x42 north facing 2BHK house plan with staircase entrance, master bedroom with attached toilet, common bedroom, hall with dining and drawing space, kitchen, front and rear balconies for ventilation.

22.5×27.6 ft 2BHK

30×52 3BHK House Plan with 10×18 Stair & Parking, 12×15 Bedrooms, 2 Toilets & Spacious Dining Area

30x52 3BHK house floor plan with stair and parking area, three bedrooms, two toilets, central drawing and dining space, kitchen, and puja room. The plot measures 30 feet in width and 52 feet in depth. A 10x18 ft stair and parking area is located at the top left corner with upward staircase access. The master bedroom (12x15 ft) is positioned at the top center. Two additional bedrooms are located at the bottom section, measuring approximately 12x13 ft and 12x15 ft. Two vertically aligned toilets (5x15 ft each) are placed on the right side for plumbing efficiency. The drawing room measures approximately 15x12 ft and connects to a dining area measuring 10x15 ft. The kitchen (8x12 ft) is placed on the left middle side adjacent to a small puja room. The layout clearly shows door swings, windows, wall thickness, and internal dimensions.

30×60 Four 1BHK Apartment Plan with Central OTS & Staircase | Double Side Rental Layout Design

30x60 four-unit 1BHK apartment floor plan featuring symmetrical layout with central OTS (Open to Sky) courtyard, staircase on the right middle section, and four independent residential units within a 30 feet wide and 60 feet deep plot. Each 1BHK unit includes one bedroom positioned at the outer ends (top and bottom), a central hall/living area, a compact kitchen adjacent to the hall, and an attached toilet. The bedrooms measure approximately 12x13 feet, halls are centrally placed with seating layout, and kitchens are compactly designed for efficient workflow. Toilets are located beside kitchens for plumbing alignment. A central OTS space provides ventilation and natural light to internal areas. The staircase along the right side ensures vertical connectivity to upper floors. The plan clearly displays internal dimensions, wall thickness, door swings, and circulation paths.

20×50 Feet Ground Floor Parking Plan with Staircase | Stilt Floor Layout for Residential Building

20x50 feet ground floor parking plan with full stilt parking area, internal staircase, and open layout for residential building on irregular shaped urban plot.

20×40 2BHK 3D Floor Plan

“165×450 ft Resort Layout | Marriage Hall, Swimming Pool, Hotel, Restaurant, Fountain & Park Floor Plan”

“2D floor plan of a 165×450 ft multipurpose resort layout featuring a large marriage hall, hotel rooms, restaurant area, swimming pool, landscaped park zones, central fountain, vehicle parking spaces, outdoor seating, and circulation paths. The design shows multiple functional zones including ceremonial areas, dining zones, hotel accommodation, event space, and recreation areas within a long rectangular site.”
