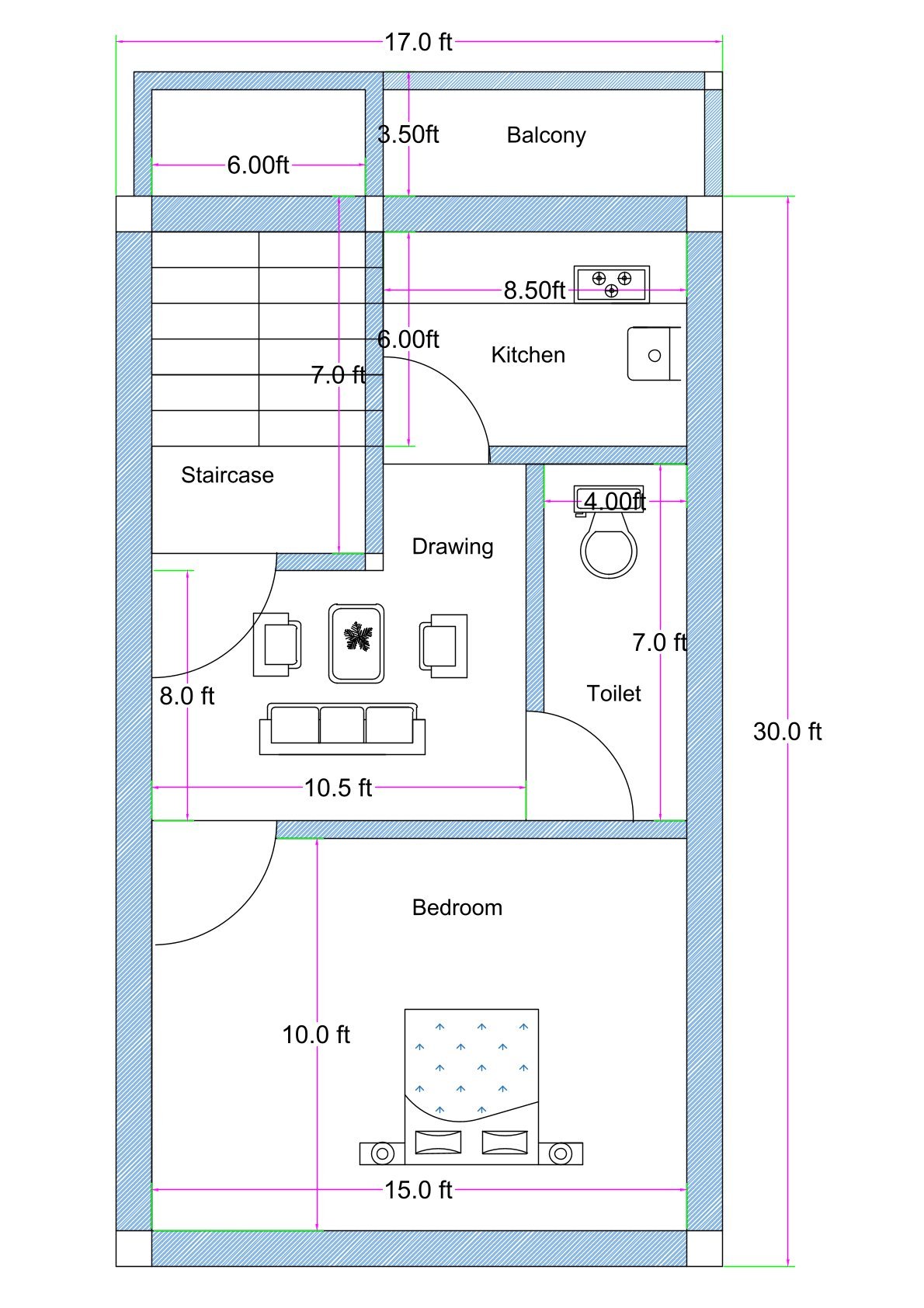

This 17×30 house plan (actual 17×33.5 ft) represents one of the most efficient architectural layouts designed for narrow urban plots where every inch of space must be optimized. The 2D floor plan includes a perfectly proportioned drawing room at the centre, which works as the heart of the home and ensures smooth circulation between the kitchen, dining and bedrooms. A dedicated puja room enriches the spiritual orientation of the house and aligns seamlessly with Vastu guidelines. Both the bedrooms at the rear side receive natural light, while the master bedroom at the front ensures privacy and premium comfort.

The kitchen in this 2D plan is positioned in such a way that ventilation, light and usability remain strong even within a narrow frontage. The toilet placement, along with the OTS shaft, ensures proper airflow and eliminates dampness—one of the biggest challenges of narrow plots. The staircase is placed efficiently on the right side of the plot to save maximum space and allow parking space on the ground floor in the extended variation of this plan.

From a structural engineering perspective, this floor plan aligns with an eight-column structural grid system with 10×10 inch RCC columns, 10×10 inch plinth beam and similar beam sections above all partition walls. This 2D floor plan is suitable for G+2 and even G+3 with a 20-ft pile foundation suggested under each column. Whether you are constructing your first home, upgrading to multiple floors or planning a rental-based structure, this 17×30 floor plan provides the perfect blueprint to begin construction with clarity and confidence.
