23×30 West Facing 2BHK House Plan with Staircase & Parking | Compact 690 Sq Ft Small Plot Home Design

This compact 2BHK house plan is designed with an actual built-up area of 23 feet by 30 feet (approximately 690 sq ft), making it ideal for small residential plots or budget-friendly housing projects.

The layout is thoughtfully organized to maximize usable space. At the rear portion, two equal-sized bedrooms (10 ft × 10.5 ft each) provide comfortable sleeping areas with proper wall alignment for furniture placement. The center of the house features a spacious 21-foot-wide drawing and dining area, ensuring smooth circulation and openness despite the compact footprint.

On the left side, a 6 ft × 8 ft functional kitchen is efficiently planned for daily use. On the right side, a 4 ft × 7 ft common toilet is conveniently accessible from the main living area.

A major highlight of this design is the 7-foot-wide staircase and parking space positioned at the front. The staircase (approximately 14.33 ft in length) allows independent access to the upper floor, making this plan suitable for duplex construction, rental income potential, or future vertical expansion.

This design is perfect for small urban plots where efficient planning, structural simplicity, and cost control are key priorities.

Leave a Comment / By

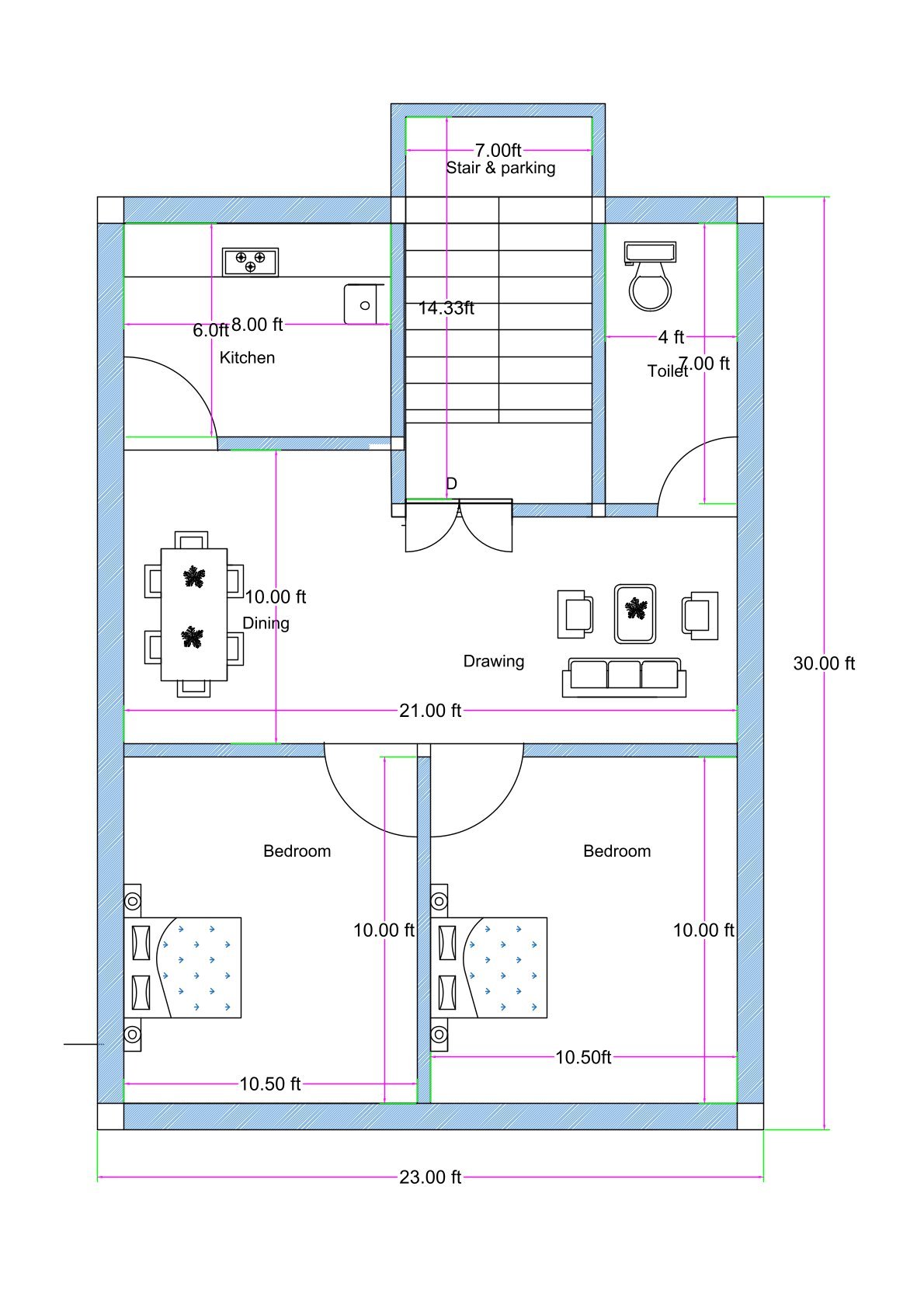

West-facing compact 2BHK house floor plan with an actual built-up size of 23 feet by 30 feet (approximately 690 square feet). The layout features two equal-sized bedrooms measuring 10 feet by 10.5 feet each, positioned at the rear side of the house. A 21-foot-wide combined drawing and dining area is centrally placed, with a 10-foot dining space and living area arrangement. The kitchen measures 6 feet by 8 feet and is located on the left side near the staircase. A common toilet of 4 feet by 7 feet is positioned on the right side. The staircase and parking area at the front measure 7 feet in width with a stair length of approximately 14.33 feet, allowing separate access to the upper floor. The entrance door is centrally aligned below the staircase landing, making it suitable for independent ground-floor use and future vertical expansion.

23×30 West Facing 2BHK House Plan with Staircase & Parking | Compact 690 Sq Ft Small Plot Home Design

₹0.00

Guaranteed Safe Checkout
somdn_product_page

Searching for a compact and practical 23×30 house plan? This west-facing 2BHK home design offers an intelligently planned layout within an actual built-up area of 23 feet by 30 feet (approximately 690 square feet), making it ideal for small residential plots, first-time homeowners, or budget-friendly construction projects.

The floor plan features two well-proportioned bedrooms at the rear, each measuring 10 feet by 10.5 feet, ensuring comfortable space for beds and wardrobes. The central portion of the house includes a wide 21-foot drawing and dining area that creates a sense of openness and allows flexible furniture placement.

The kitchen, sized at 6 feet by 8 feet, is positioned efficiently on the left side for functional workflow, while a 4 feet by 7 feet common toilet is located on the right side for easy accessibility.

One of the most practical features of this design is the 7-foot-wide front staircase and parking area. The staircase length of approximately 14.33 feet provides direct access to the upper floor, making this layout ideal for future vertical expansion or rental use.

This 23×30 2BHK house plan is perfectly suited for compact plots where space efficiency, ventilation, and future growth potential are essential considerations.
