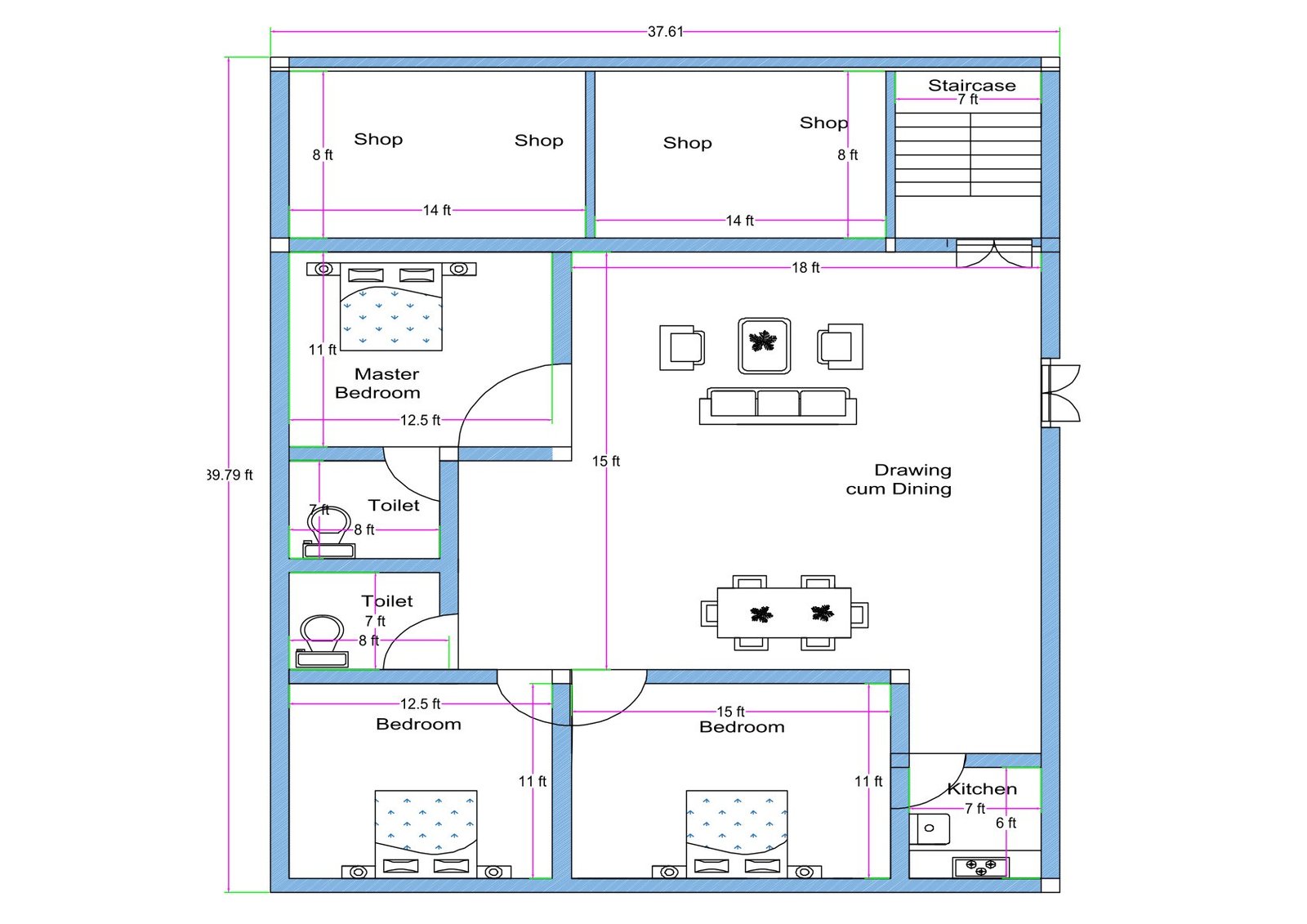

This smartly designed 3BHK house plan with shops for a 40×40 plot—created using an actual working layout of 37.6×39.7 ft—is a perfect combination of residential comfort and commercial income generation. The design is ideal for families who want to live comfortably while earning monthly rental income from shops situated at the front.

Commercial Shops at the Front

The layout includes three front-facing shops, each measuring approximately 14×8 ft, positioned along the entire width of the plot. These shops provide excellent visibility toward the main road, making them suitable for grocery stores, medical counters, mobile shops, boutiques, stationery stores, or rental businesses. The staircase beside the shops allows separate access to future upper floors without disturbing shop customers.

Master Bedroom + Toilets

Behind the shops lies a spacious master bedroom measuring about 12.5×11 ft with an attached toilet. This provides privacy for the homeowners and maintains separation between commercial and residential spaces. Two additional common toilets are positioned centrally, making them easily accessible for all occupants.

3 Spacious Bedrooms

The layout includes:

• A 12.5×11 ft bedroom on the left

• A 15×11 ft bedroom on the right

• The master bedroom with attached toilet on the upper-left side

All bedrooms are well-ventilated, furniture-friendly, and placed away from commercial noise.

Drawing-cum-Dining Hall

At the center of the plan, a large 18×15 ft drawing-cum-dining hall serves as the heart of the home. This open and spacious multipurpose area offers ample room for dining, entertainment, and family gatherings. It connects seamlessly with all bedrooms and the kitchen, ensuring smooth circulation.

Modular Kitchen

The kitchen, sized approximately 11×6 ft, is compact yet efficient. Its placement beside the dining hall improves functionality and workflow, while windows allow natural ventilation.

Staircase Placement

The staircase is located on the top-right corner beside the shops, making the layout perfect for G+1 or G+2 extensions. This ensures privacy for the family even if the owner chooses to construct rental units on the upper floors.

Why This Layout Works Perfectly for 40×40 Plots

• Commercial + residential combined in one plan

• Strong income potential from multiple shops

• Well-balanced room placement and ventilation

• Spacious central living area

• Perfect for families plus rental business

• Easy future expansion

Overall, this 40×40 (actual 37.6×39.7 ft) 3BHK house plan with shops is an excellent choice for homeowners who want maximum utility, financial benefits, and a modern, vastu-friendly layout.
