“60×55 ft Hospital Floor Plan (Actual Size 62×55 ft) | Clinic Layout with Consulting Rooms, Passages & Staircase”

“This is a professionally drafted 60×55 ft hospital floor plan (actual size 62×55 ft) created for small hospitals, clinics, and diagnostic centres. The layout includes multiple consulting rooms, treatment sections, and structured cabin-style spaces on both sides of the corridor. The design uses the angled boundary efficiently without wasting usable internal area. A staircase block on the right side ensures smooth vertical movement for additional floors. With clear dimensions and sectional zoning, this layout is ideal for medical facilities looking to maximize space, patient flow, and operational efficiency.”

Leave a Comment / By

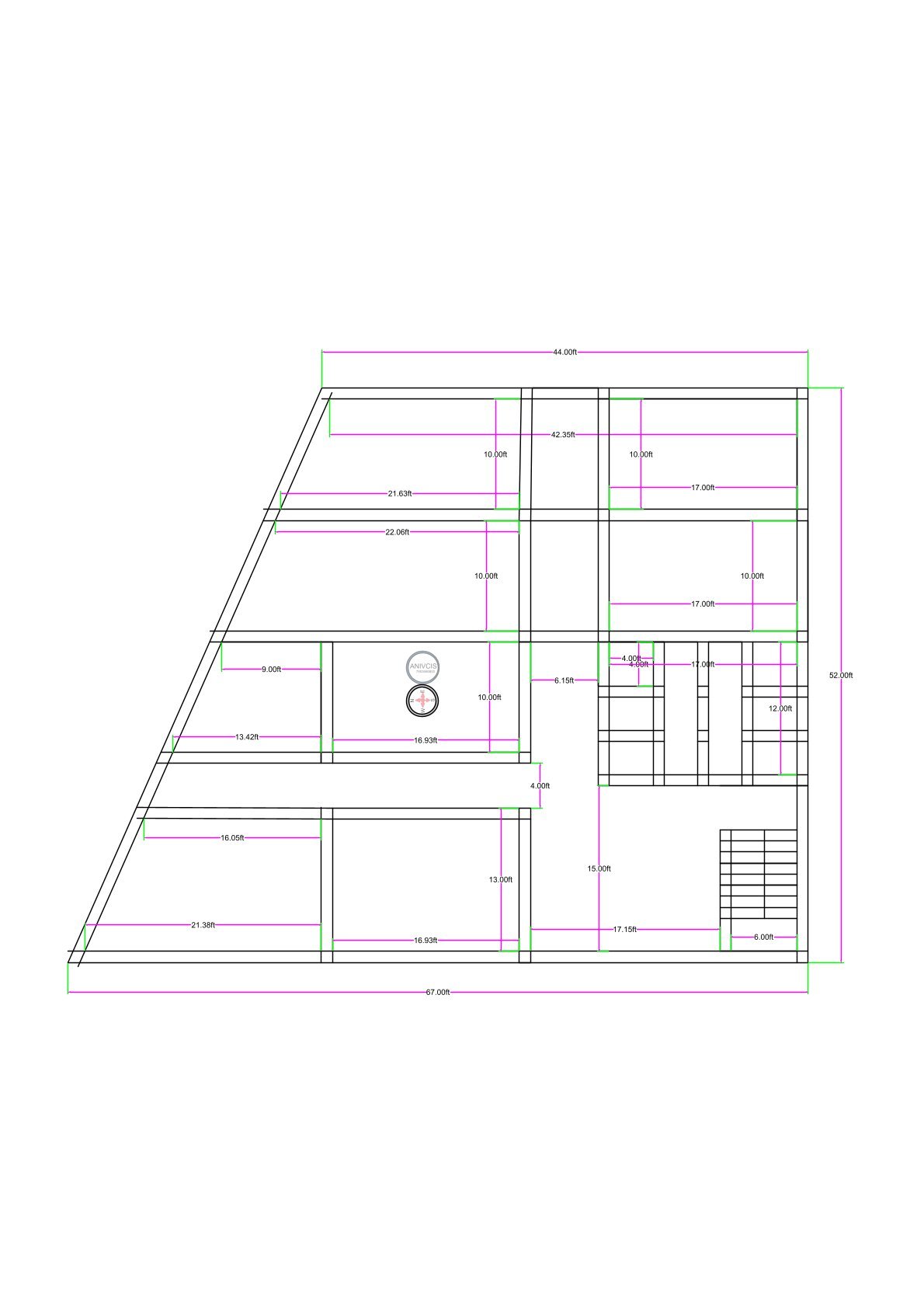

“2D hospital floor plan designed on a 60×55 ft plot (actual size 62×55 ft), featuring consulting cabins, treatment rooms, waiting areas, an angled boundary layout, passageways, and a staircase block. The plan shows clear room divisions, accurate dimensions, and circulation areas suitable for a small hospital, clinic, diagnostic centre, or medical facility.”

“60×55 ft Hospital Floor Plan (Actual Size 62×55 ft) | Clinic Layout with Consulting Rooms, Passages & Staircase”

₹0.00

Guaranteed Safe Checkout
somdn_product_page

This detailed 2D hospital plan is designed using 60×55 ft as the SEO-friendly size, with the actual plot measurement being 62×55 ft. The design is ideal for clinics, nursing homes, diagnostic centres, and small hospitals that require a clean, functional, and space-efficient layout to support smooth medical operations.

The floor plan includes multiple consulting rooms and treatment cabins, arranged systematically around a central circulation path. These rooms are ideal for patient check-ups, medical procedures, and specialized doctor consultations. The layout also includes spaces that can be used for waiting areas, reception counters, pharmacy units, small labs, or storage of medical supplies. With clear dimension markings, the plan is construction-ready and supports accurate execution on site.

A notable feature of this design is the angled boundary on the left side, which is creatively utilized so no part of the structure wastes square footage. Every inch of the 60×55 ft (actual 62×55 ft) area is optimized to support patient flow, staff movement, and equipment placement. The long passageways allow smooth movement of wheelchairs, stretchers, and attendants, making it suitable for high-footfall medical environments.

On the right side of the plan, a well-positioned staircase block provides access to upper floors. This supports future expansion such as ICU units, general wards, pathology labs, administrative offices, or additional consulting rooms. The zoning is balanced, keeping clinical areas separated from circulation pathways for safety, hygiene, and operational efficiency.

This hospital plan’s structured cabin layout allows flexibility—each cabin can be used as a doctor’s room, injection room, dressing room, scanning room, or small medical procedure area. The plan also ensures the right amount of enclosed spaces and open areas for ventilation, natural lighting, and patient comfort.

Overall, this 60×55 ft hospital floor plan (actual 62×55 ft) is ideal for anyone planning to build a small-to-medium medical facility with a clear, practical, and professional architectural layout.
